Cal Poly Pomona Solar Boat Club Hull Models

  • Fabricated scale models of new hull designs from high-density foam using a custom-designed 3-axis CNC machine.

    • Machine: Custom 3-Axis CNC Machine

    • CAD Software: Solidworks

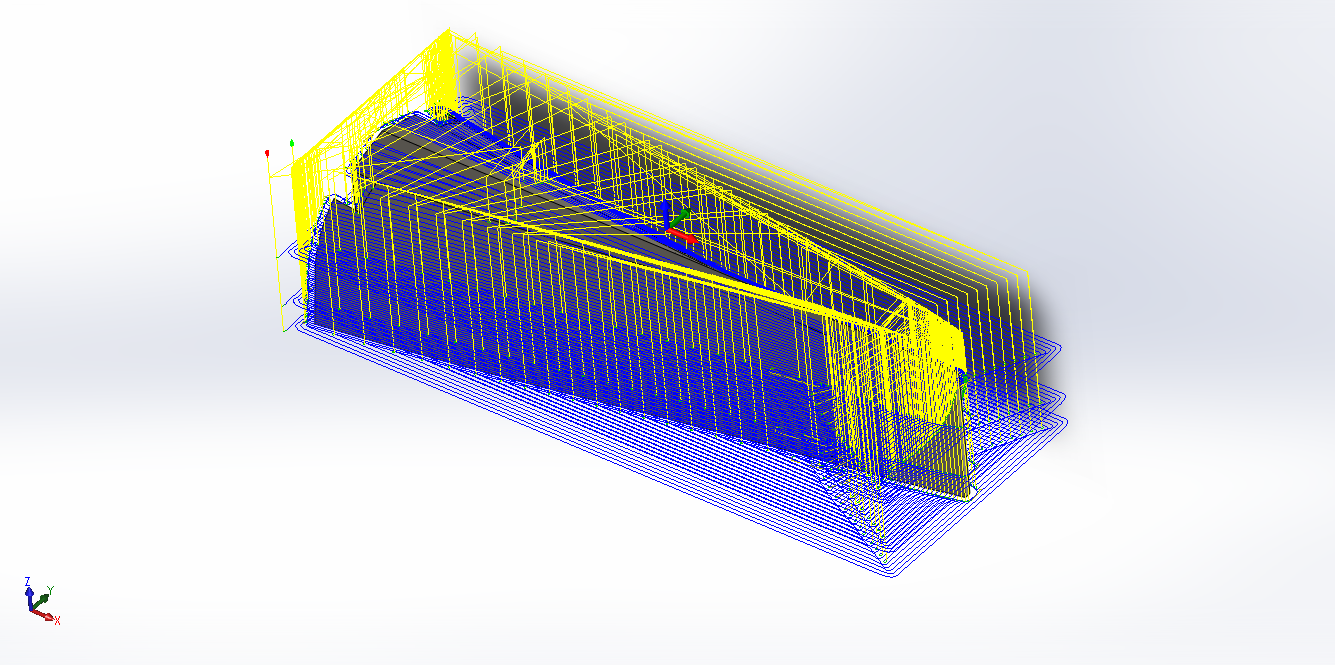

    • CAM Software: HSMworks

  • Created foam models to serve as plugs for fiberglass mold production.

    • Fiberglass hull models were then used for fluid flow testing.

  • Divided hull models into multiple segments due to CNC machine work area constraints.

  • Added keys and slots to each segment to aid in alignment during assembly.

2012-10-23 12.21.02.jpg
2012-10-23 16.32.17.jpg
2012-10-24 16.00.51.jpg
2012-11-21 15.09.31 (1).jpg
